Autotaps DIY Sensor Conversion Kit
You can buy our Autotaps sensor kit, which can be used with most manual/conventional taps. ASK-100 sensor kit will enable a manual/conventional tap to be converted to a sensor automated 'no touch' activation.
ASK-100 Sensor Kit
Easy to to implement
Save water, save energy
Up to 70% water conservtion
Portable- Small wall-mountable infra red activation component
Flexibility- You can choose any manual tap of your choice and design
Compatible with most conventional taps
Chrome-plated finish infra red component housing
Sensing distance/range adjustable
Easy mount sensor ring
6v Transformer supplied
With our sensor kit, you get the following parts:
1x Infrared/Fibre-optic Sensor (Sensor cable length: 120cm approx.)
1x Control box
1x Transformer (built inside the control box)
Sensor cable length: 176cm
Sensing distance: 10-27cm (Adjustable)
Respond time: 1 Second
Diameter of 'inlet' pipe - Control box: G1/2”
Diameter of 'outlet' pipe - Control box: G1/2"
Water pressure range: 0.75 (Min) - 7 Bar (Max)
Voltage: DC6V or AC220V-240V (6V Output)
Battery Consumption (DC): 4xAA alkaline batteries (2 years lifespan depending on level of usage)
Power consumption: =0.3mW
Silent Consumption: 0.003mW
Environment Temperature: 1-45 C
Pipe Threading: British Standard Whitworth (BSW)
Your choice of manual tap can be any tap with a single supply.
This sensor kit is designed for taps only and it's not waterproof. Warranty void if used for any other installation purposes/applications other than for taps.

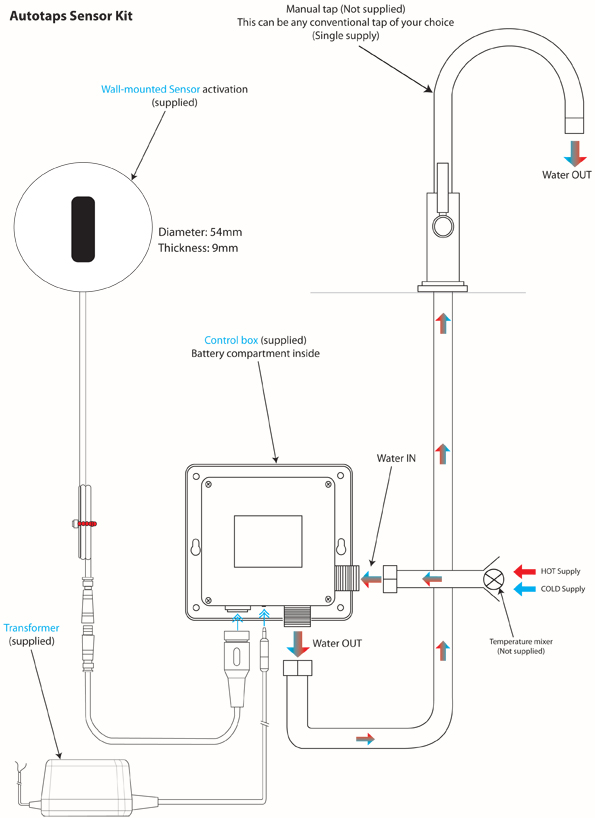

Typical Installation diagram
